N Male Plug Straight Crimp RF Connector 50 ohm, RG58 Cable Straight RF Coaxial Connector

$4.00

ASIN B0BN6PSN8S
Date First Available November 23, 2022
Manufacturer SYSTEC101
Description
  • High-Quality Connector – This N-type Male Plug Straight Crimp RF RG58 connector is made of copper nickel plated body, brass gold plated pin, and Teflon insulation for higher signal transmission to provide you a better experience.
  • Low Loss and Low SWR Connector – Provides you with no measurable SWR increase nor signal loss. Impedance: 50 ohm & low loss. Impedance: 50 Ohm , attenuates signal of this RG58 n connector is less than 0.1db. VSWR< 1.15.
  • Compatible – Our N Male Plug Straight crimp RF connector for RG58, LMR195, RG400 Impedance: 50 Ohm | Operating frequency: 0-1000MHz.
  • <span”>SYSTEC101 is a professional manufacturer of RF Coaxial cable connectors, our n connectors are 100% tested. If you are not satisfied with any product, please feel free to contact us.

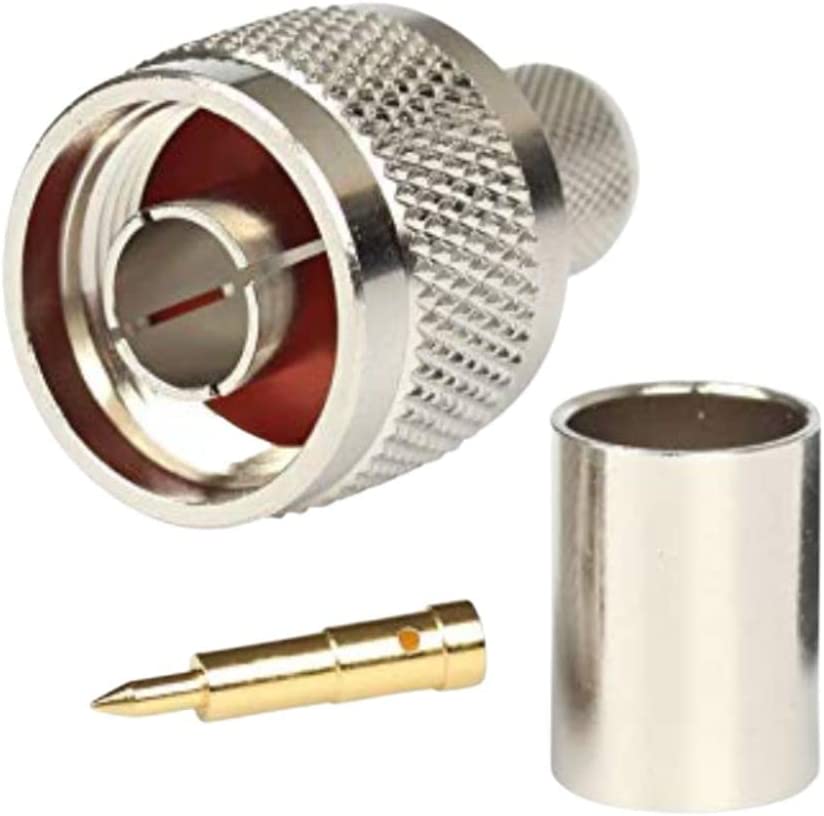

  • Package Includes – 1 x RG58 N Male Crimp Connector, used to connect n-type female connector.

Product Description

SYSTEC101 – N Male Plug Straight Crimp RF Connector 50 ohm, RG58 Cable Straight RF Coaxial Connector

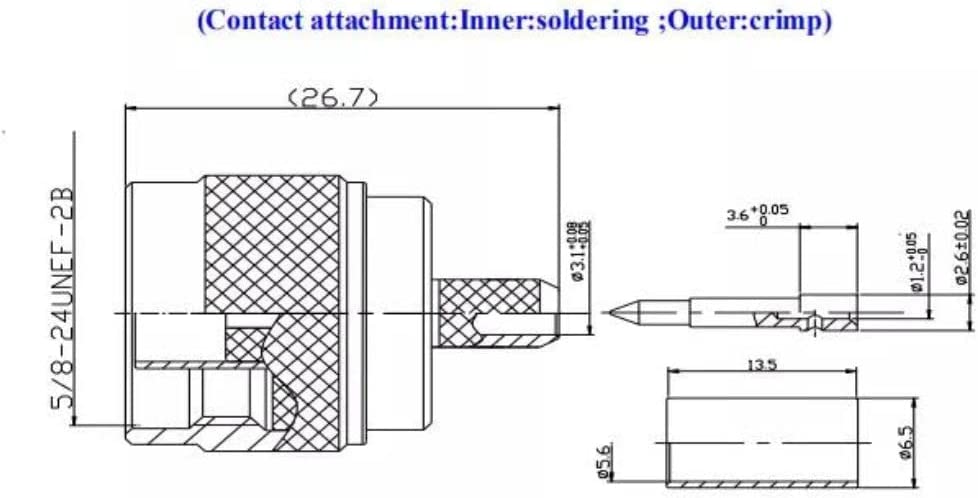

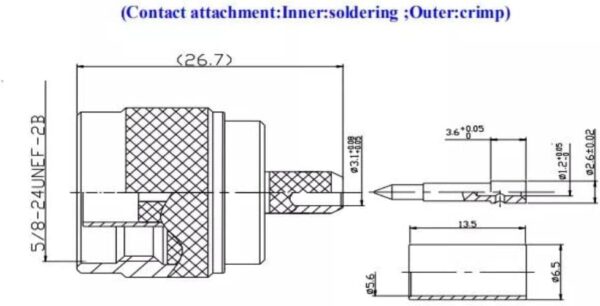

Connector Specs:
Impedance: 50 ohm
Temperature range: -40°C to +85 °C
Dielectric standing Voltage: 2500V (RMS)
Center conductor ≤ 1mΩ
Outer conductor ≤ 1mΩ
Insulation Resistance :≥ 5000MΩ
Durability :≥ 500 cycles

Package includes:
1x N Male Plug Straight Crimp RF Connector.
