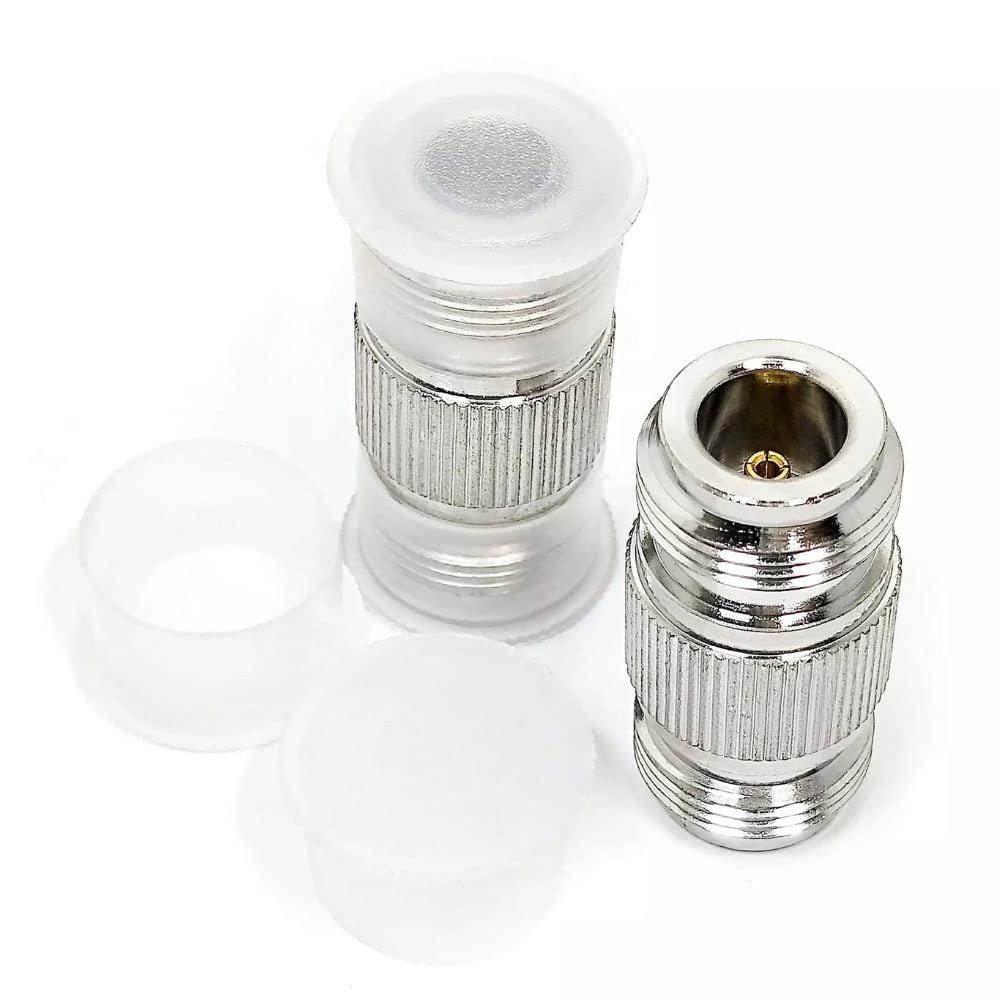

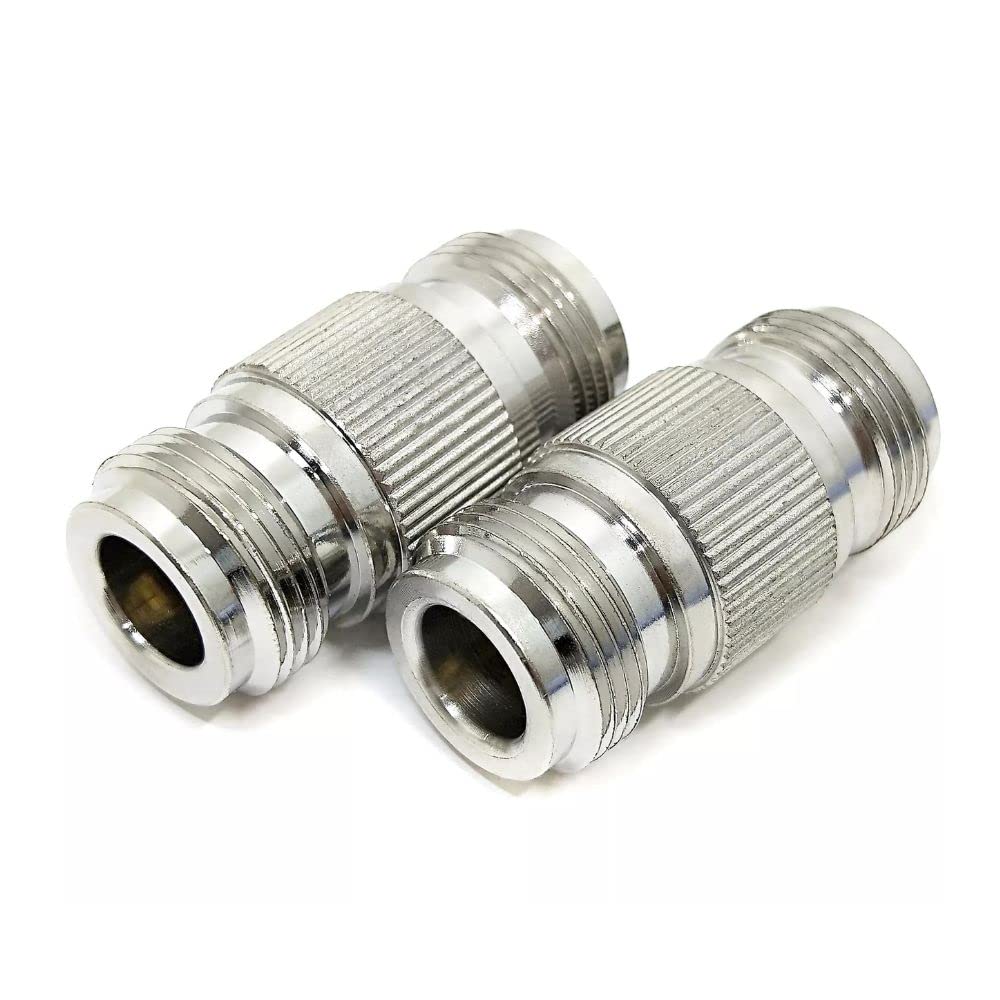

N Female to N Female Coaxial Cable Adapter Connector, N-Type Female to Female Connectors, RF Coax Connector Coupler 50ohm for Ham Radio Antenna Wi-Fi Antenna Router.

$4.00

Date First Available ‏ : ‎ November 23, 2022

Manufacturer ‏ : ‎ SYSTEC101

ASIN ‏ : ‎ B0BN6FK7HN

Description
  • Connector Type – N-type female to female adapter used to connect n-type male coaxial cable.
  • High Quality – Coax adapter female to female attenuates signal only 0.1dB. N-type female to female adapter made of high-quality brass, nickle plated body, gold plated contacts. Provides you with no measurable SWR increase nor signal loss. Impedance: 50 ohm & low loss.
  • Applications – N-female to N-female Coaxial Cable Connector used for ham radio, radios, Wi-Fi, telecom, antenna extension, cell phone signal booster, communication system/, RF communications, das system, wireless LAN device etc.
  • SYSTEC101 is a professional manufacturer of RF Coaxial cable connectors, our N-type female to female connectors are 100% tested. If you are not satisfied with any product, please feel free to contact us.
  • Package Includes – 1 x Coaxial Cable Connector N-type female to female.

Product Description

SYSTEC101 – N Female to N Female Coaxial Cable Adapter Connector, N-Type Female to Female Connectors, RF Coax Connector Coupler 50ohm for Ham Radio Antenna Wi-Fi Antenna Router.

SYSTEC101 focus on coaxial connectors. Our RF connectors can be used to connect the coaxial cable.

Product Specs
Type: N female to N female
Application: RF Coax (Not for TV)
Gender: Female Temperature Range -55~+155°C (PE Cable -40~+85°C)
Impedance 50Ω
Vibration 100m/S2 (10~500Hz), 10g
Frequency Range DC-11GHz
Insertion Loss ≤ 0.24dB/6GHz
Withstanding Voltage 2500V r.m.s at sea level
Working Voltage 1000Vr.m.s at sea level
Insulation Resistance ≥ 5000 MΩ
Center conductor retention force 450N
Durability ≥ 500(cycles)
