3-Way Microstrip Splitter with N-Female Connectors 800-2500Mhz, High Performance for Coax Cable TV, Internet & CATV Antenna System, 50 Ohm Signal Splitter for 3G 4G LTE

$40.00

Manufacturer SYSTEC101
ASIN B0BNLJ91VQ
Date First Available November 29, 2022
Description
  • Multi-Purpose Splitter – SYSTEC101 coax cable splitter is used for splitting signals to up to 3 devices. It works with cable TV, signal booster, satellite, high-speed internet or camera, and cable TV, amplifying signal antenna, amplifier, and other coaxial devices.
  • Frequency – 800-2500 Mhz Frequency Range.
  • Low Loss – Insertion Loss ≤3dB (For 380/800/900MHz ) , or ≤ 5dB (For 1800/1900/2100MHz ). Microstrip structures, in-band flatness is good, high isolation and insertion low loss.
  • Connector Type – N-Female. 3-way split, 1 in 3 out.
  • SYSTEC101 is a professional manufacturer of RF Coaxial cables and connectors, our cables and connectors are 100% tested. If you are not satisfied with any product, please feel free to contact us.

Product Description

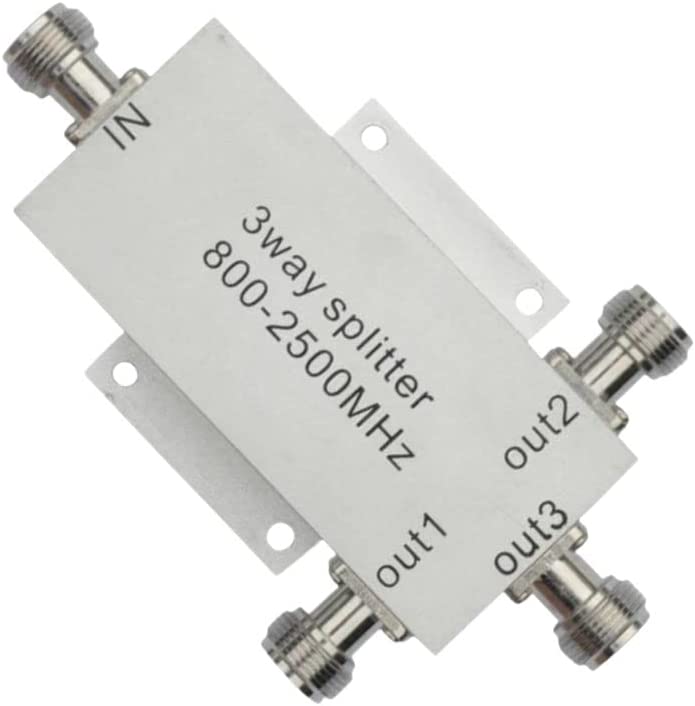

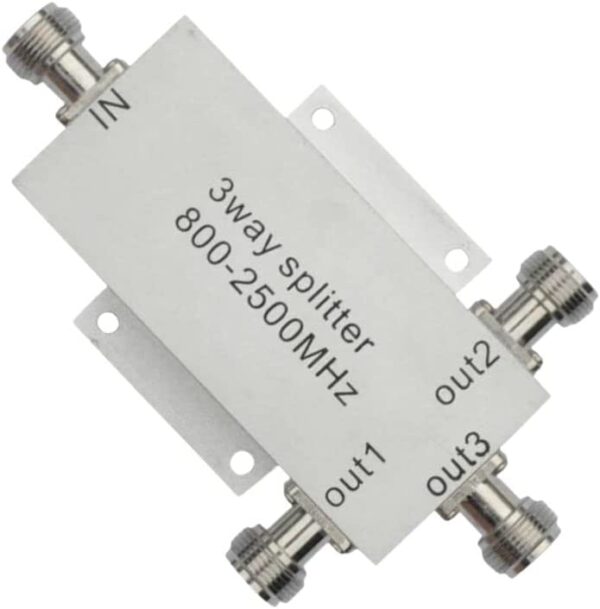

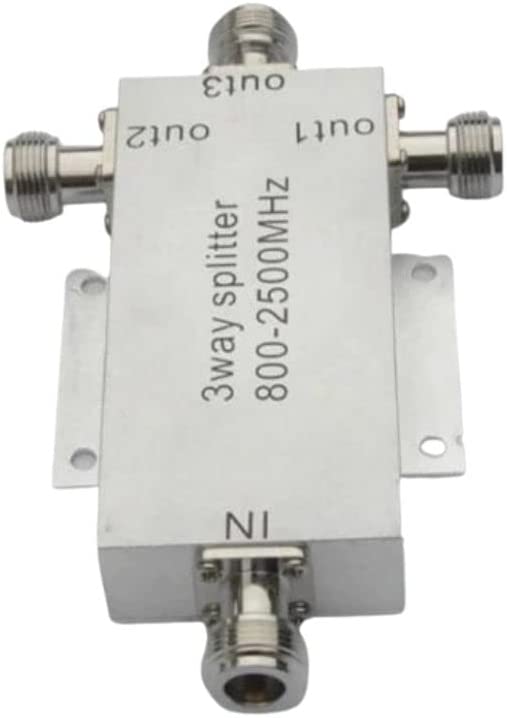

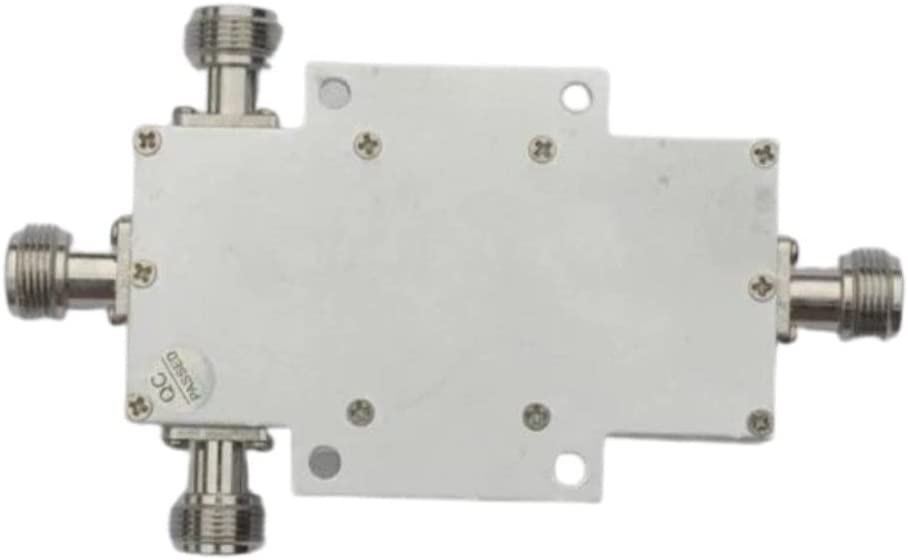

SYSTEC101 – 3-Way Coaxial Cable Splitter Divider 800-2500Mhz N-Female

SYSTEC101 3-way splitter lets you easily deliver digital signal to multiple devices. This splitter allows signals to be split with minimal signal loss. It transfers audio and video for all brands of electronics using N-type connectors and is capable of handling frequencies of 800-2500MHZ.

Product information:
Frequency Range: 800-2500MHz
Connector: N-Female
Input Ports: 1 Way
Output Ports: 3 Way
I/O impedance: 50Ω
Biggest power:50W
Connector: N-female
Waterproof: IP64
Ripple: ≤0.3dB
Isolation: ≥20 dB
Operating tempL: -25 – +55

Package includes:1 x 3-Way Splitter Kit

SYSTEC101 is a professional manufacturer of RF coaxial cables and connectors, our cables and connectors are 100% tested. If you are not satisfied with any product, please feel free to contact us.
