2-Way Coaxial Cable Splitter Divider 800-2500Mhz 50Ω N Female, High Performance for Coax Cable TV, Internet & CATV Antenna System.

$32.00

Description
  • Multi-Purpose Splitter – SYSTEC101 coax cable splitter is used for splitting signals to up to 2 devices. It works with cable TV, satellite, high-speed internet or camera, and cable TV, amplifying signal antenna, amplifier, and other coaxial devices.
  • Frequency – Distributes Signal Of 800-2500 Mhz Frequency Range.
  • Low Loss – Insertion Loss ≤3dB (For 380/800/900MHz ) , or ≤ 5dB (For 1800/1900/2100MHz ).
  • Connector Type – N-Female.
  • SYSTEC101 is a professional manufacturer of RF Coaxial cables and connectors, our cables and connectors are 100% tested. If you are not satisfied with any product, please feel free to contact us.

Product Description

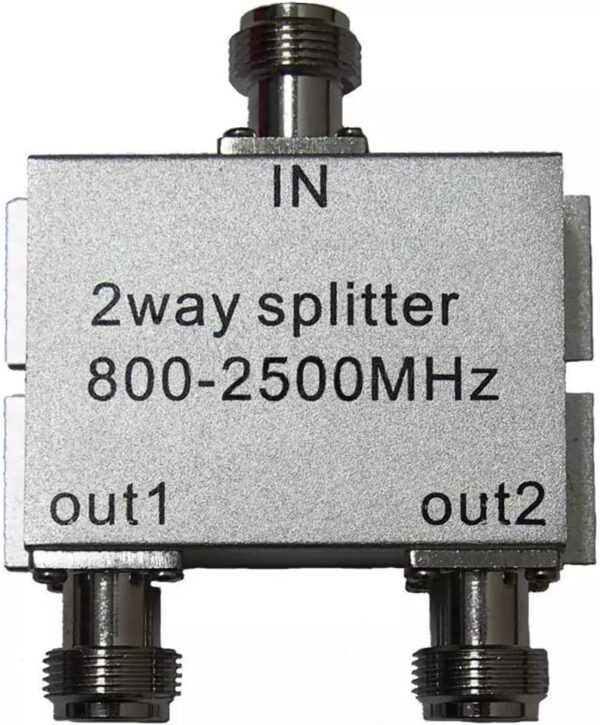

SYSTEC101 – 2-Way Coaxial Cable Splitter Divider 800-2500Mhz N Female

SYSTEC101 2-way splitter lets you easily deliver digital signal to multiple devices. This splitter allows signals to be split with minimal signal loss. It transfers audio and video for all brands of electronics using N-type connectors and is capable of handling frequencies of 800-2500MHZ.

Product information:
Frequency Range: 800-2500MHz
Connector: N-Female
VSWR: ≤1.28
Input Ports: 1 Way
Output Ports: 2 Way
I/O impedance: 50Ω
Ambient temperature:-10°C~60°C
Biggest power:50W
Insertion loss: ≤3.1db
Connector: N-female

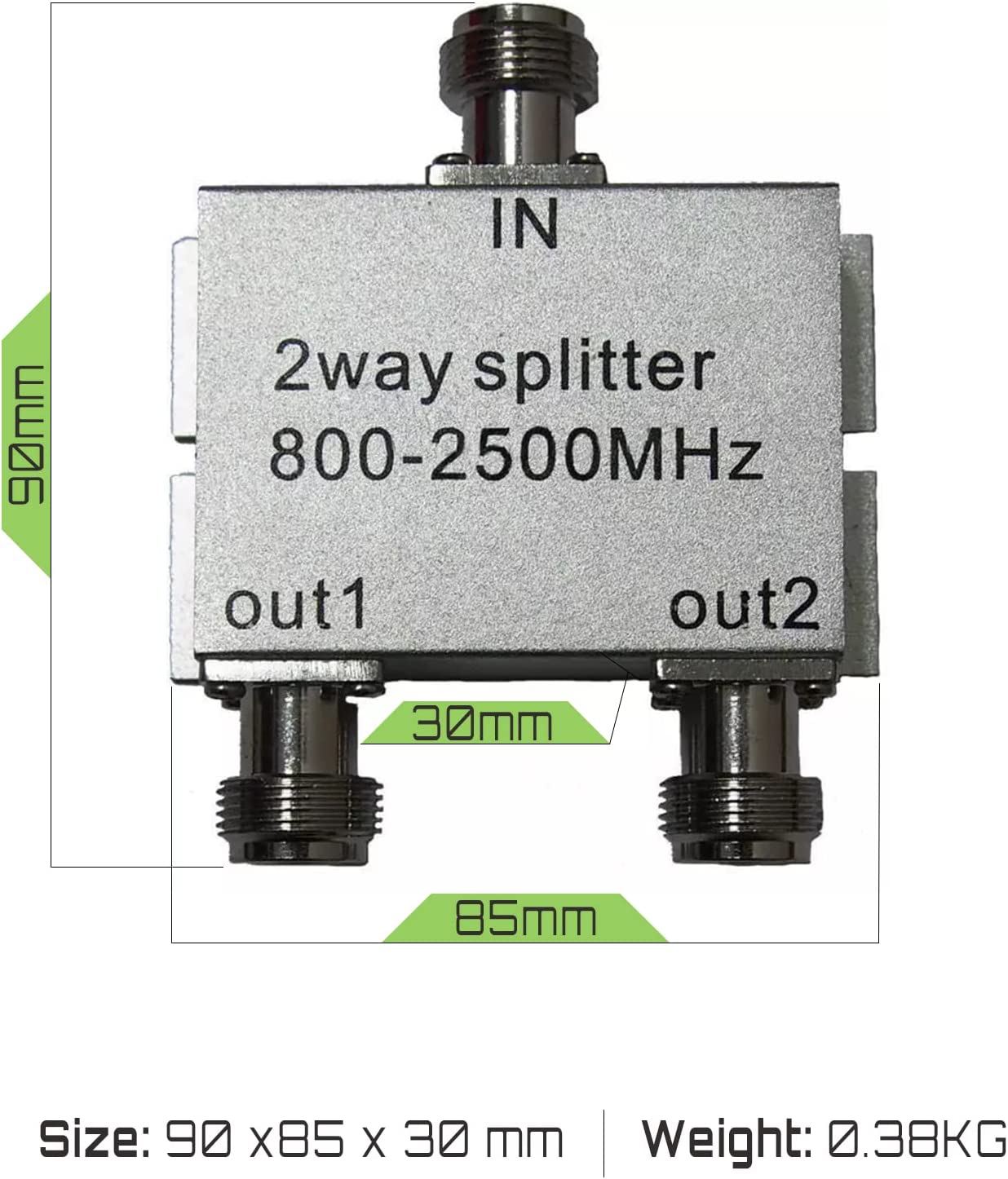

Size & Dimension: 90mm x85mm x 30mm
Weight: 0.38kg
Waterproof: IP64
Working Temperature: -35℃ ~ +60℃
Package includes:1 x 2-Way Splitter Kit

SYSTEC101 is a professional manufacturer of RF Coaxial cables, splitter and connectors, our cables and connectors are 100% tested. If you are not satisfied with any product, please feel free to contact us.
